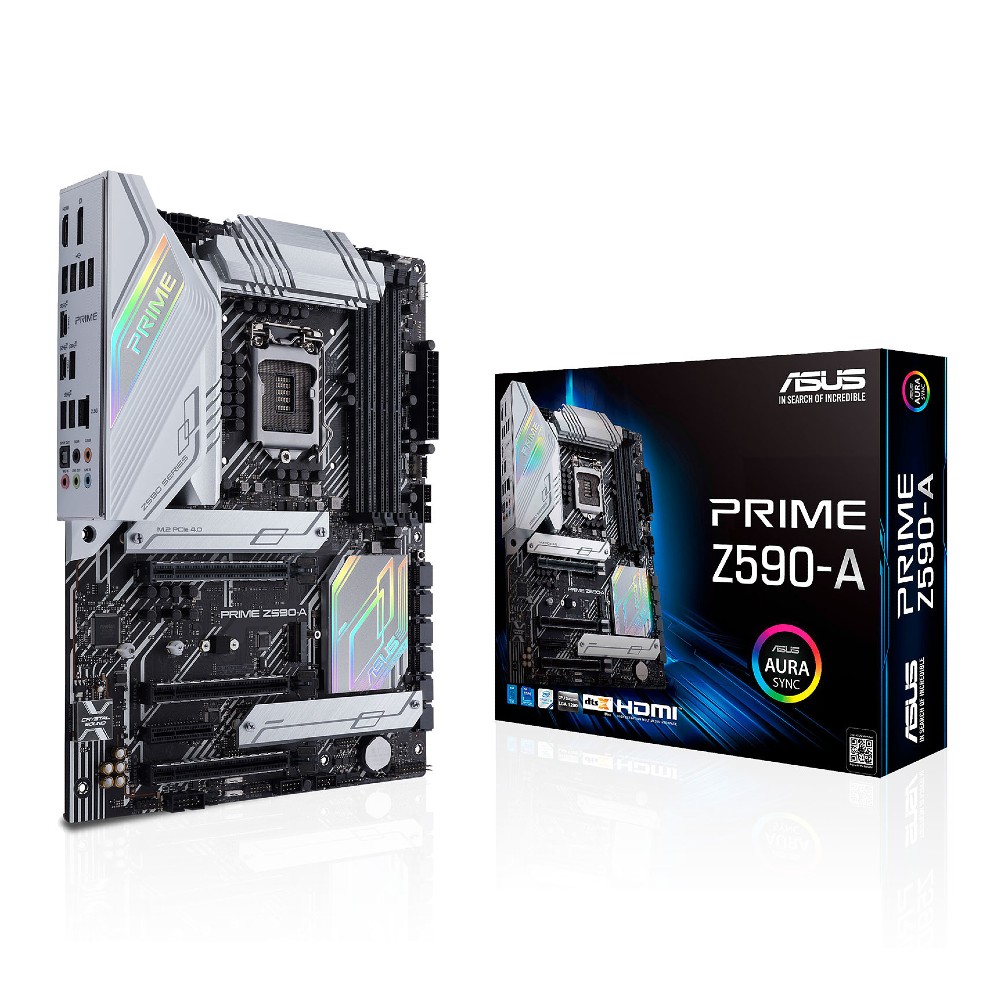

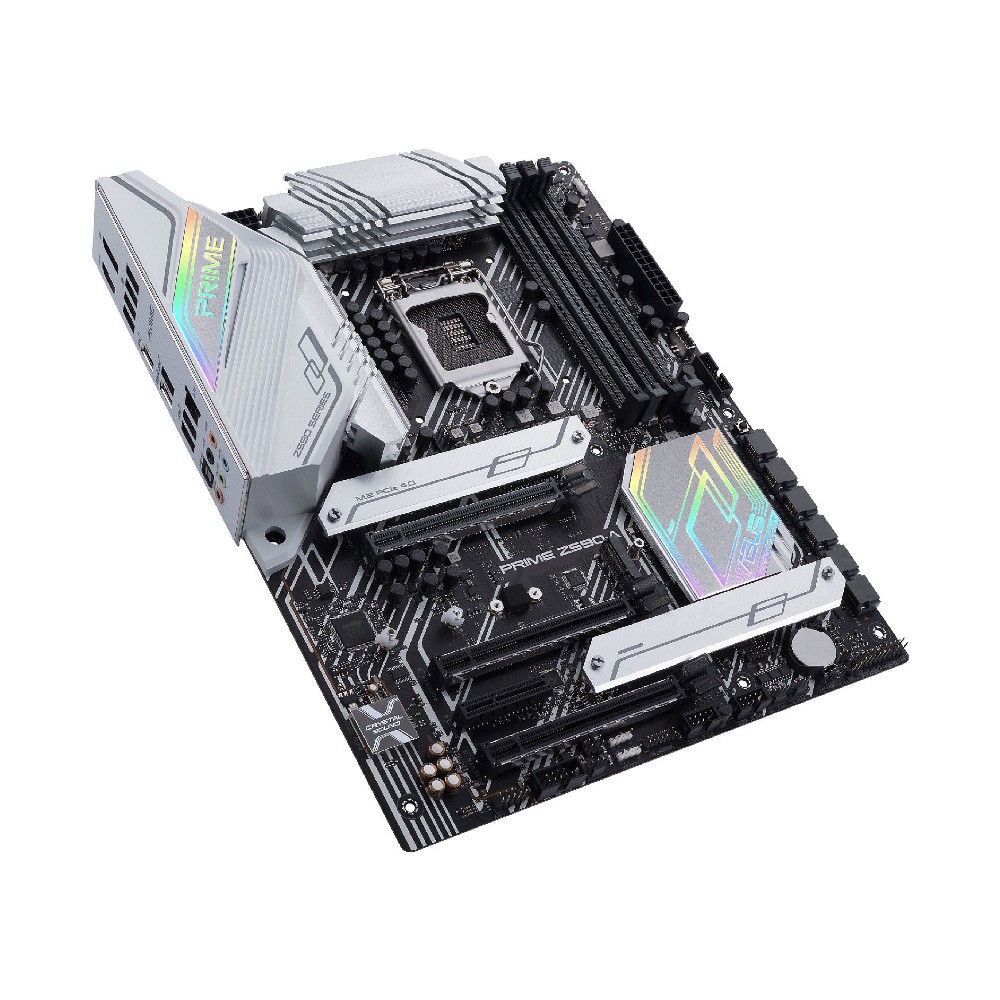

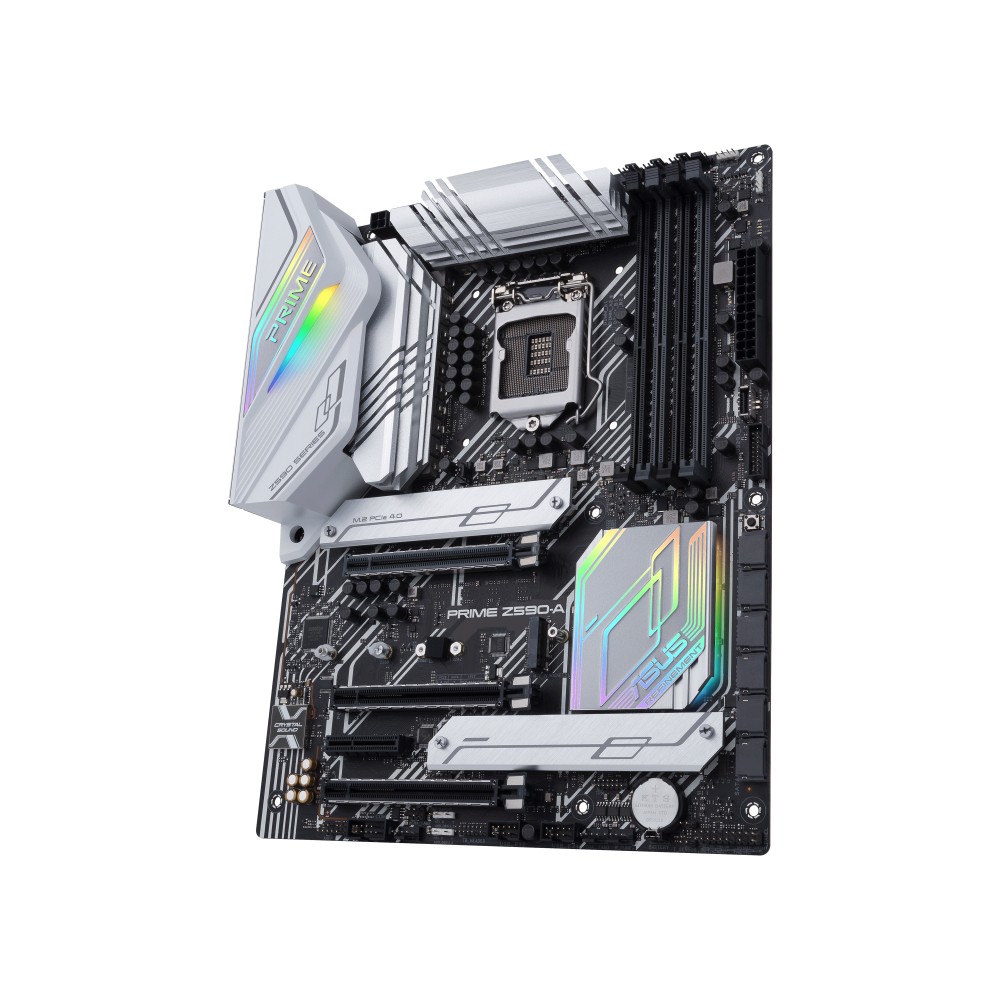

MOTHER BOARD ASUS Z590-A 90MB16D0

Descripción

• CPU
  Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
  Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  Z590
• Memoria
  Memory Channels: 4DDR4 (Dual channel)
• Max Memory Size: 128GB
  5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
  10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
  11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.
  Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
• Gráficos
  1 x DisplayPort 1.4
  1 x HDMI™ 2.0
• Graphics specifications may vary between CPU types.
  Only Intel® 11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
  Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz.
• VGA resolution support depends on processors’ or graphic cards’ resolution.
  Ranuras de expansión
  3 x PCIe 4.0/3.0 x16 (x16, x8/x4/x4)
• Intel® 11th & 10th Gen Processors
  3 x PCIe 4.0/3.0 x16 slots*
  Intel® 11th Core™ processors support PCIe 4.0 x16
  Intel®10th processors support PCIe 3.0 x16
  Intel® Z590 Chipset
  1 x PCIe 3.0 x4 slot
• Almacenamiento
  Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel®11th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280/22110
  Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode.
  Intel® Z590 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
  M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)
  6 x SATA 6Gb/s ports
  *Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
  To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
  M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
  M.2_3 shares bandwidth with SATA6G_6. When M.2_6 runs SATA mode, SATA6G_6 will be disabled.
• Ethernet
  1 x Intel® 2.5Gb Ethernet

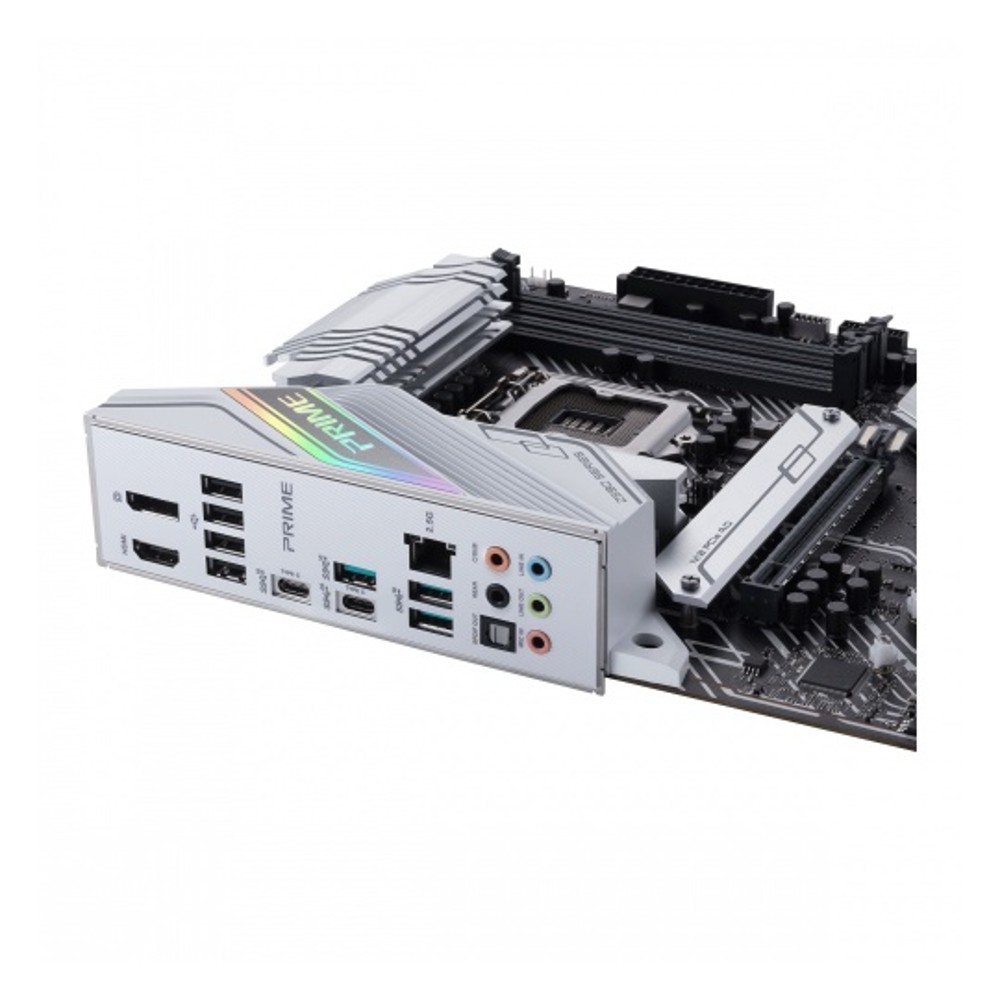

  USB
  Rear USB:Total 9 ports
  1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
  4 x USB 2.0 ports (4 x Type-A)
• Front USB:Total 7 ports
  1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
  S1220A
  Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
  Impedance sense for front and rear headphone outputs
  Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  Supports up to 32-Bit/192 kHz playback
